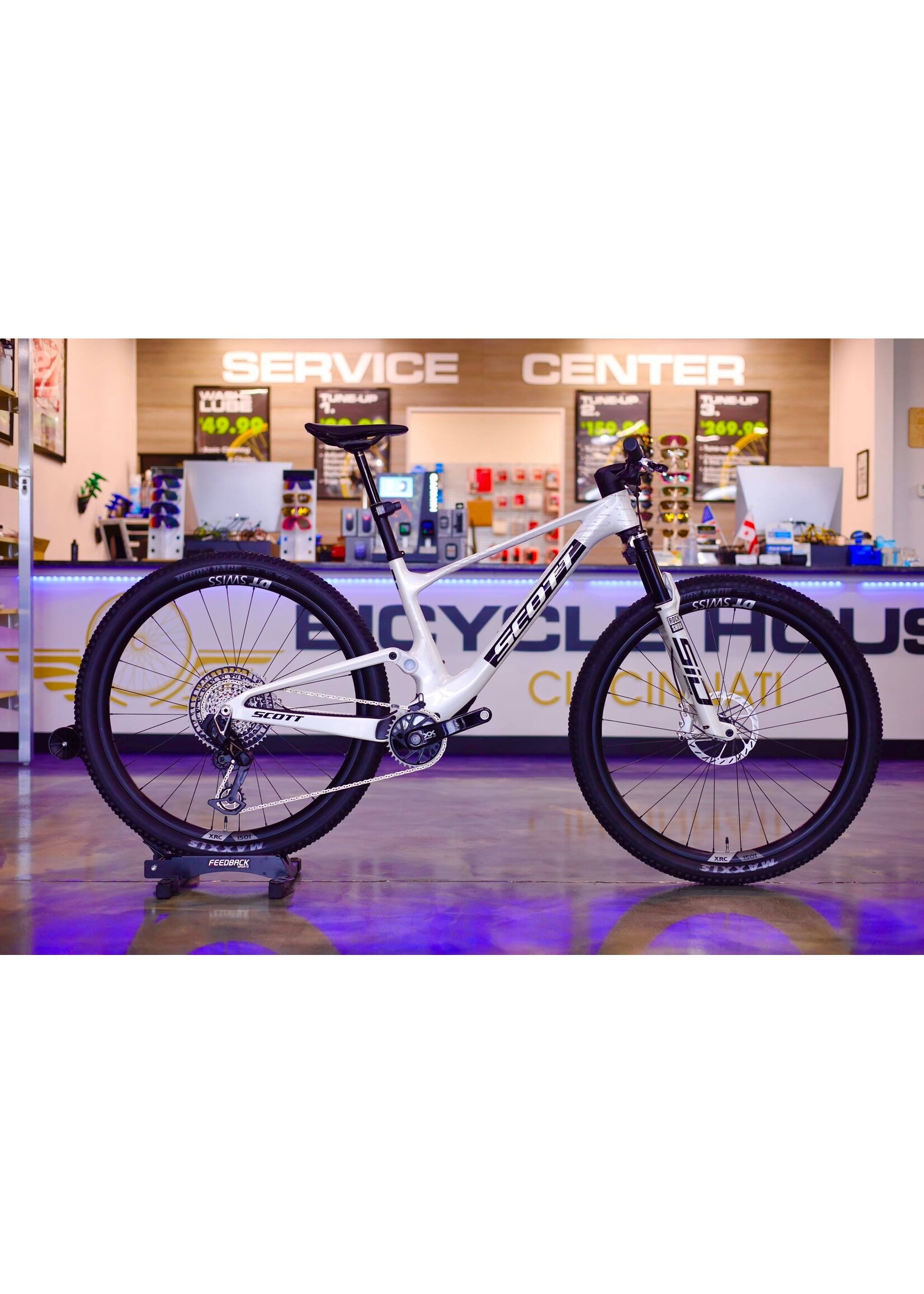

The Spark RC World Cup EVO is the perfect blend of top-notch carbon engineering, never before seen levels of integration and just the right amount of secret sauce. We wanted to make this platform faster than ever before both up and down the hill. Increasing travel, perfecting geometry, and applying input from the world's best athletes, we've created the cross country race bike of all cross country race bikes. If you think fast is fun, then you're going to love this ride.

Frame

Spark RC Carbon HMX
Integrated Suspension Technology
Flex Pivot, Adjustable Head Angle
Syncros Cable Integration System
BB92, UDH Interface
12x148mm Boost Rear Spacing, 55mm Chainline

Fork

RockShox SID Ultimate Flight Attendant
Electronically Controlled Suspension
FA Race Day Damper, 3 Modes
15x110mm Maxle Stealth
44mm Offset, Tapered Steerer
Lockout, Rebound Adjustment
120mm Travel

Rear Shock

RockShox SIDLuxe Ultimate Flight Attendant Custom
Electronically Controlled Suspension
3 Modes: Lockout / Pedal / Descend
Solo Air
Rebound Adjustment
Bearing Hardware
Travel: 120mm
Size: 165x45mm

Remote / Suspension System

RockShox Flight Attendant
Automatic Electronic Suspension System
Real-time Rider Input Response

Rear Derailleur

SRAM XX SL Eagle AXS Transmission
12-Speed Wireless Electronic Shifting

Shifters

SRAM AXS Rocker Pod Controller

Crankset

SRAM XX Eagle AXS Transmission
Carbon Crankarms
Spindle Power Meter
DUB Interface
55mm Chainline
34T Chainring

Chainguide

SCOTT Custom

Bottom Bracket

SRAM DUB PF92 MTB Wide
Shell: 41x92mm

Chain

SRAM XX SL Eagle Transmission

Cassette

SRAM XX SL Eagle XS-1299 Transmission
10–52T

Brakes

SRAM Motive Ultimate
4-Piston Disc Brakes

Rotors

SRAM HS2 CenterLock
180mm Front / 160mm Rear

Handlebar

Syncros Fraser iC SL XC Carbon
-12° Rise
8° Backsweep
740mm Width

Grips

Syncros Performance XC Lock-On

Seatpost

RockShox Reverb AXS, 31.6mm
S: 100mm
M / L: 125mm
XL: 150mm

Saddle

Syncros Belcarra V1.0 Cut Out
Carbon Rails

Headset

Syncros / Acros Angle Adjust & Cable Routing System
Stainless
±0.6° Head Angle Adjustment
ZS56/28.6 – ZS56/40 MTB

Wheelset

DT Swiss XRC 1501 Carbon
CenterLock
Front: 15x110mm
Rear: 12x148mm Boost
30mm Internal Width
Tubeless Ready
28H
XD Driver

Front Tire

Maxxis Rekon Race
29x2.4"
120 TPI
Foldable Bead
Tubeless Ready
EXO Casing

Rear Tire

Maxxis Rekon Race
29x2.4"
120 TPI
Foldable Bead
Tubeless Ready
EXO Casing

Extras

SRAM AXS PowerPack
Syncros Tubeless Handlebar Tool

Accessories

Tire Sealant
Transport Axle

Approx. Weight

10.9 kg (Tubeless Setup)
24.03 lbs (Tubeless Setup)

Max System Weight

130 kg

System weight includes bike, rider, equipment, and any additional luggage.
