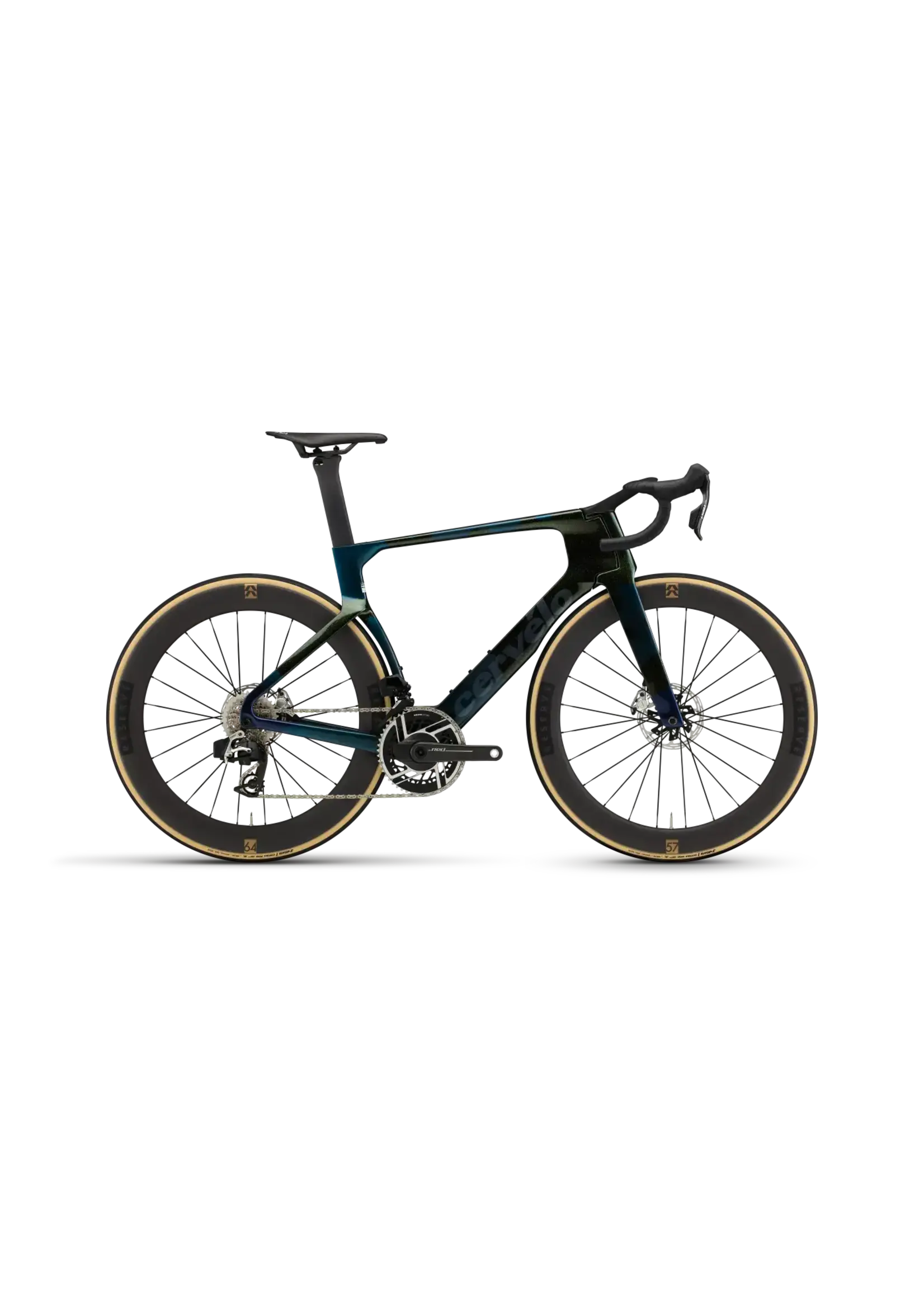

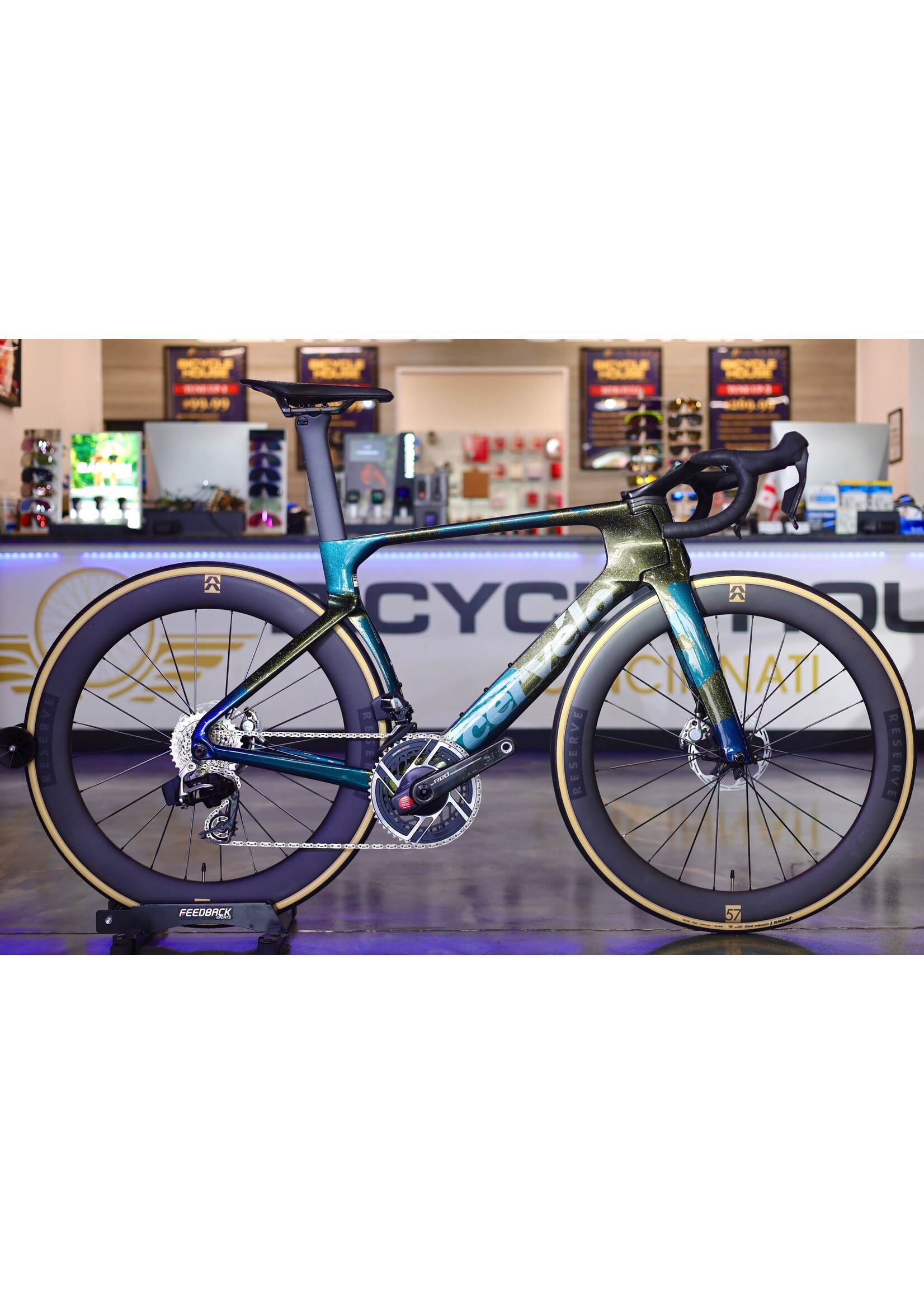

Cervélo S5 MAPS – Red AXS 1

Introducing MAPS

Introducing MAPS, a mega-limited edition colorway for the Cervélo S5, with only 650 bikes available worldwide.

MAPS features an interpretive world atlas design that creates a unique full-frame camouflage effect when the sunlight hits.

For North America, the S5 MAPS is available as a complete build featuring top-tier components. In other global markets, MAPS is offered as a frameset for a fully customized build.

Build Specifications

Sizes
48cm, 51cm, 54cm, 56cm, 58cm, 61cm

Weight
7.3 kg

Fork
Cervélo All-Carbon Bayonet S5 Fork

Shifter / Brake Levers
SRAM Red AXS E1

Front Derailleur
SRAM Red AXS E1

Rear Derailleur
SRAM Red AXS E1

Crankset
SRAM Red AXS E1, 50/37T, DUB, with power meter

Crank Length
48cm: 160mm
51cm: 165mm
54cm: 170mm
56cm: 170mm
58cm: 172.5mm
61cm: 172.5mm

Cassette
SRAM Red E1, 10-33T, 12-speed

Chain
SRAM Red E1

Bottom Bracket
SRAM DUB Ceramic, BBright

Brake Rotors
SRAM Paceline X CenterLock

Front Wheel
Reserve 57TA, DT Swiss 180, 12x100mm, 24H, CenterLock, tubeless compatible

Rear Wheel
Reserve 64TA, DT Swiss 180, 12x142mm, XDR freehub, 24H, CenterLock, tubeless compatible

Tires
Vittoria Corsa Pro TLR G2.0, 700x29c

1-Piece Handlebar / Stem
Cervélo HB19 Carbon

Handlebar Sizing
48cm: 36cm
51cm: 38cm
54cm: 40cm
56cm: 40cm
58cm: 40cm
61cm: 40cm

Stem Sizing
48cm: 80mm
51cm: 90mm
54cm: 100mm
56cm: 100mm
58cm: 110mm
61cm: 120mm

Headset
FSA SL IS2, 1-1/8", 36° x 45° / 1-3/8", 36° x 45°

Saddle
Fizik Arione R1 Light

Seatpost
Cervélo SP34 Carbon

Seatpost Sizing
48cm: 0mm
51cm: 0mm
54cm: 0mm
56cm: 0mm
58cm: 0mm
61cm: 15mm

Front Thru-Axle
Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length

Rear Thru-Axle
Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length

Accessories
Cervélo Rear Accessory Mount
Cervélo Front Computer/Accessory Mount 266
