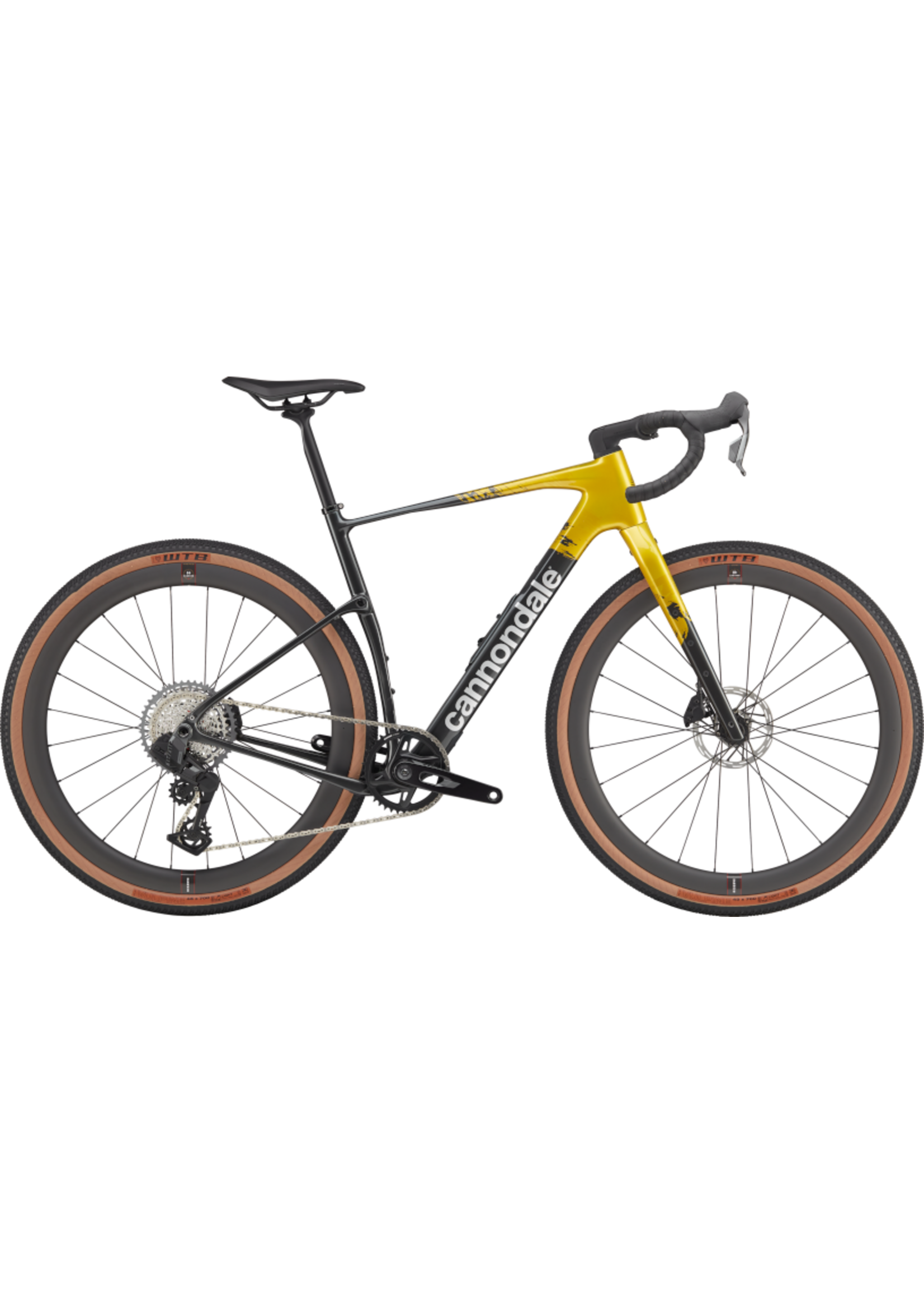

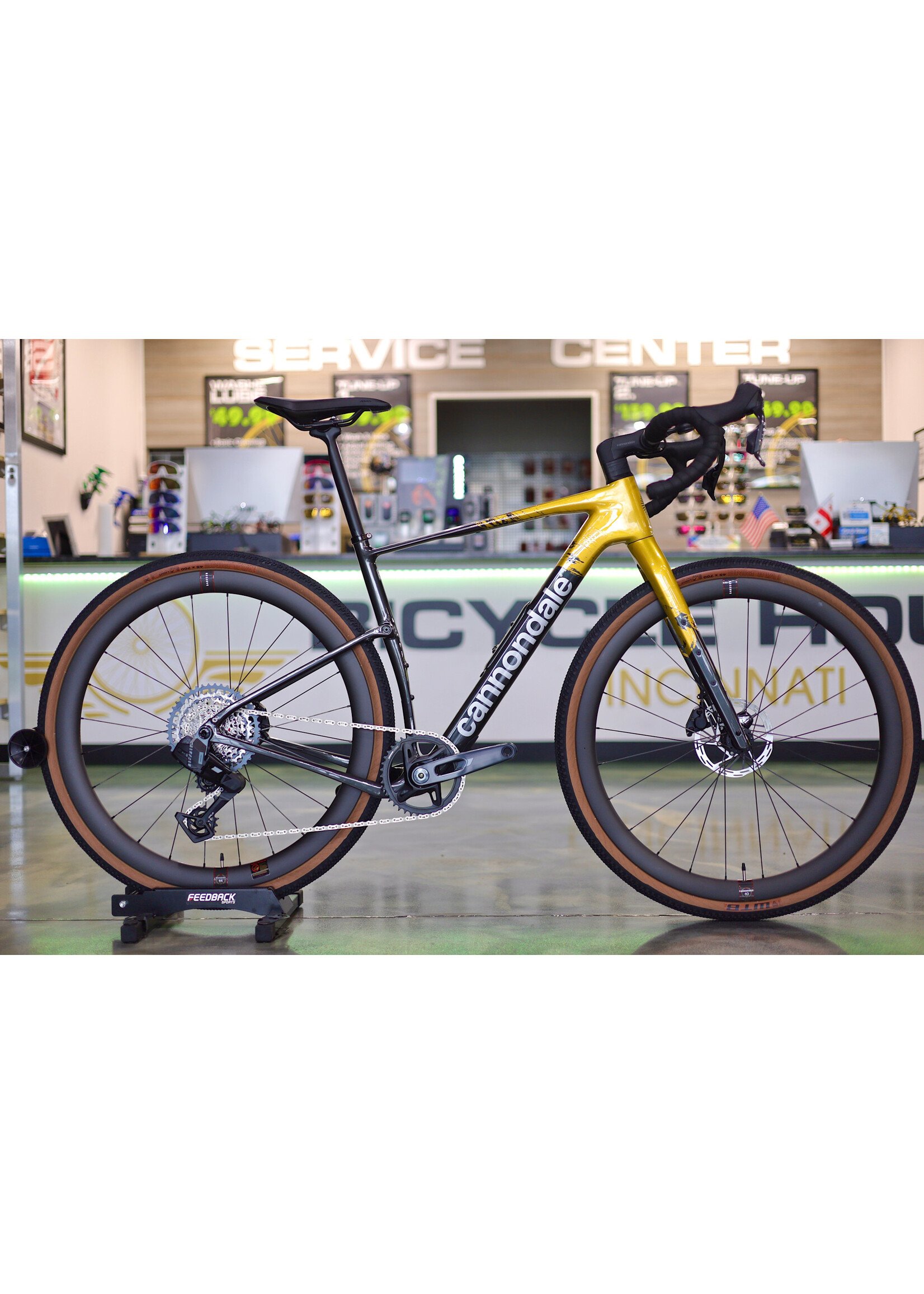

Cannondale Topstone – Product Specification

Frame: Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2mm dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc brakes, removable fender bridge, multiple gear/bottle mounts

Fork: Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100mm thru-axle, triple bottle/gear mounts, fender mounts

Wheels:

• Rims: Reserve 40 I 44 GR Carbon, 24h, tubeless ready

• Hubs: Front DT Swiss 370, 12x100mm centerlock / Rear DT Swiss 370, 12x142mm centerlock

• Spokes: Sapim CX-Ray Aero, straight-pull

• Tires: WTB Vulpine TCS Light, 700x45c, tubeless ready

Drivetrain:

• Crankset: SRAM Rival XPLR Wide, 40T

• Bottom Bracket: SRAM DUB BSA Road 68 Wide

• Chain: SRAM Rival

• Rear Cogs: SRAM Rival XPLR, XG-1351, 10-46, 13-speed

• Rear Derailleur: SRAM Rival AXS XPLR

• Shifters: SRAM Rival AXS

Cockpit & Controls:

• Handlebar: Easton EA70 AX

• Grips: Cannondale KnurlCork, 2.7mm

• Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°

• Headset: Acros IS52/40 ICR

Brakes: SRAM Rival hydraulic disc, 160/160mm Paceline centerlock rotors

Saddle & Seatpost:

• Saddle: Fizik Terra Argo X5, S-Alloy rails

• Seatpost: Cannondale SAVE Carbon, 27.2x350mm (47-58), 400mm (61)

Pedals: Not included

Sizes Available: 47, 51, 54, 56, 58, 61

Extras: Large StashBag downtube storage bag, Reserve Fillmore tubeless valve stems, SRAM AXS charger
