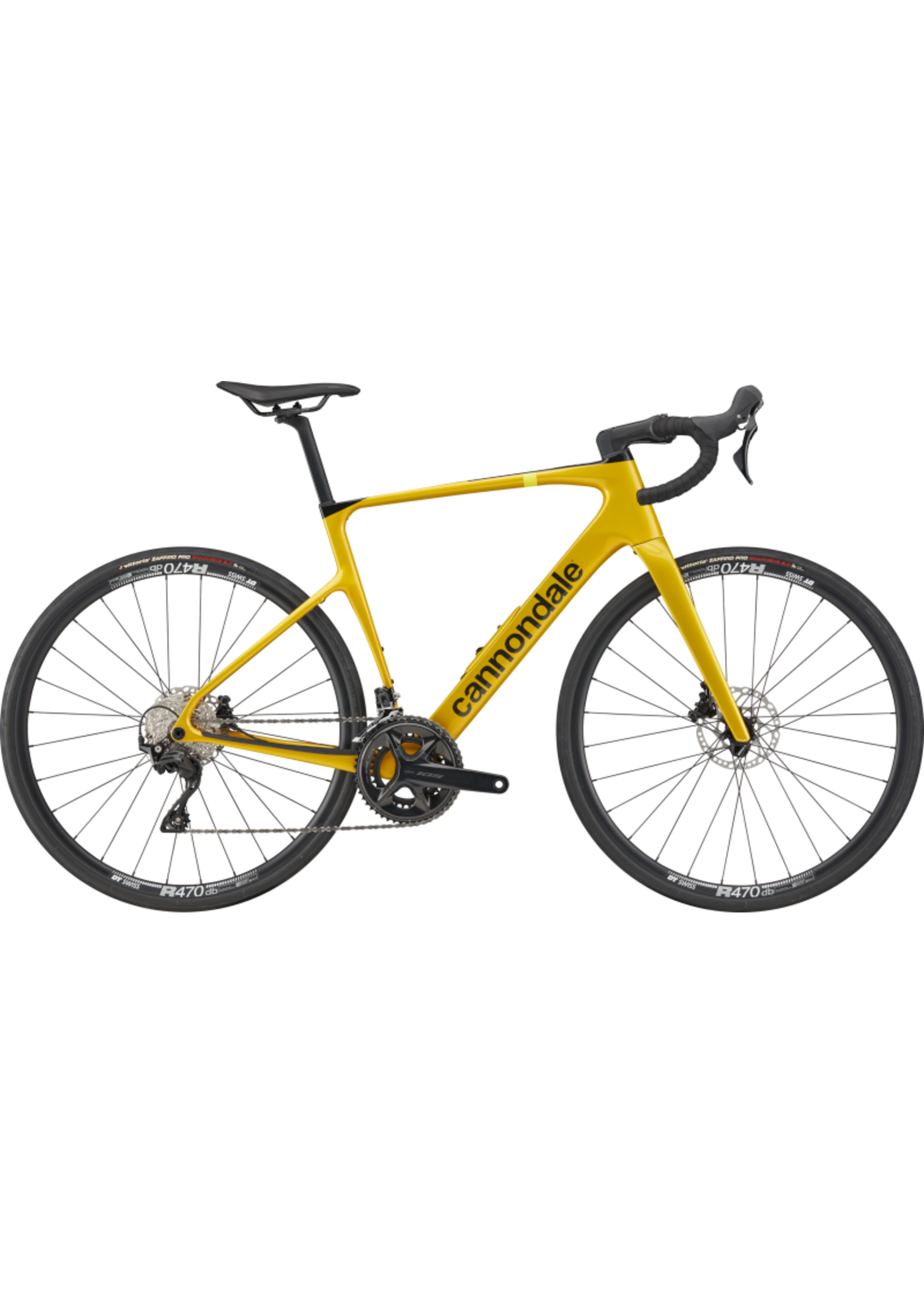

Cannondale Synapse – Product Specification

Frame: Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc brakes, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts

Fork: Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts

Wheels:

• Rims: DT Swiss R470 db, 28h

• Hubs: Front Shimano RS470 12x100mm centerlock / Rear Shimano RS470 12x142mm centerlock

• Spokes: Stainless steel, 14g

• Tires: Vittoria Zaffiro Pro V, 700x32c

Drivetrain:

• Crankset: Shimano 105 7100, BSA, 50/34; 165mm (44cm), 170mm (48-51cm), 172.5mm (54-56cm), 175mm (58-61cm)

• Bottom Bracket: Shimano BSA 68

• Chain: Shimano 105 7100, 12-speed

• Rear Cogs: Shimano 105 7100, 11-36, 12-speed

• Front Derailleur: Shimano 105 7100, braze-on

• Rear Derailleur: Shimano 105 7100

• Shifters: Shimano 105 7100, 12-speed

Cockpit & Controls:

• Handlebar: Vision Trimax Aero Alloy; 400mm (44-51cm), 420mm (54-61cm)

• Grips: Cannondale Bar Tape, 3.5mm

• Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°; 80mm (44-48cm), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)

• Headset: Integrated, 1-1/8" - 1-1/2"

Brakes: Shimano 105 7170 hydraulic disc, 160/160 RT70 rotors

Saddle & Seatpost:

• Saddle: Fizik Terra Argo X7, 150mm

• Seatpost: HollowGram 27, Alloy, 2-bolt clamp, 330mm, 15mm offset

Pedals: Not included

Sizes Available: 44, 48, 51, 54, 56, 58, 61
