Faster Everywhere

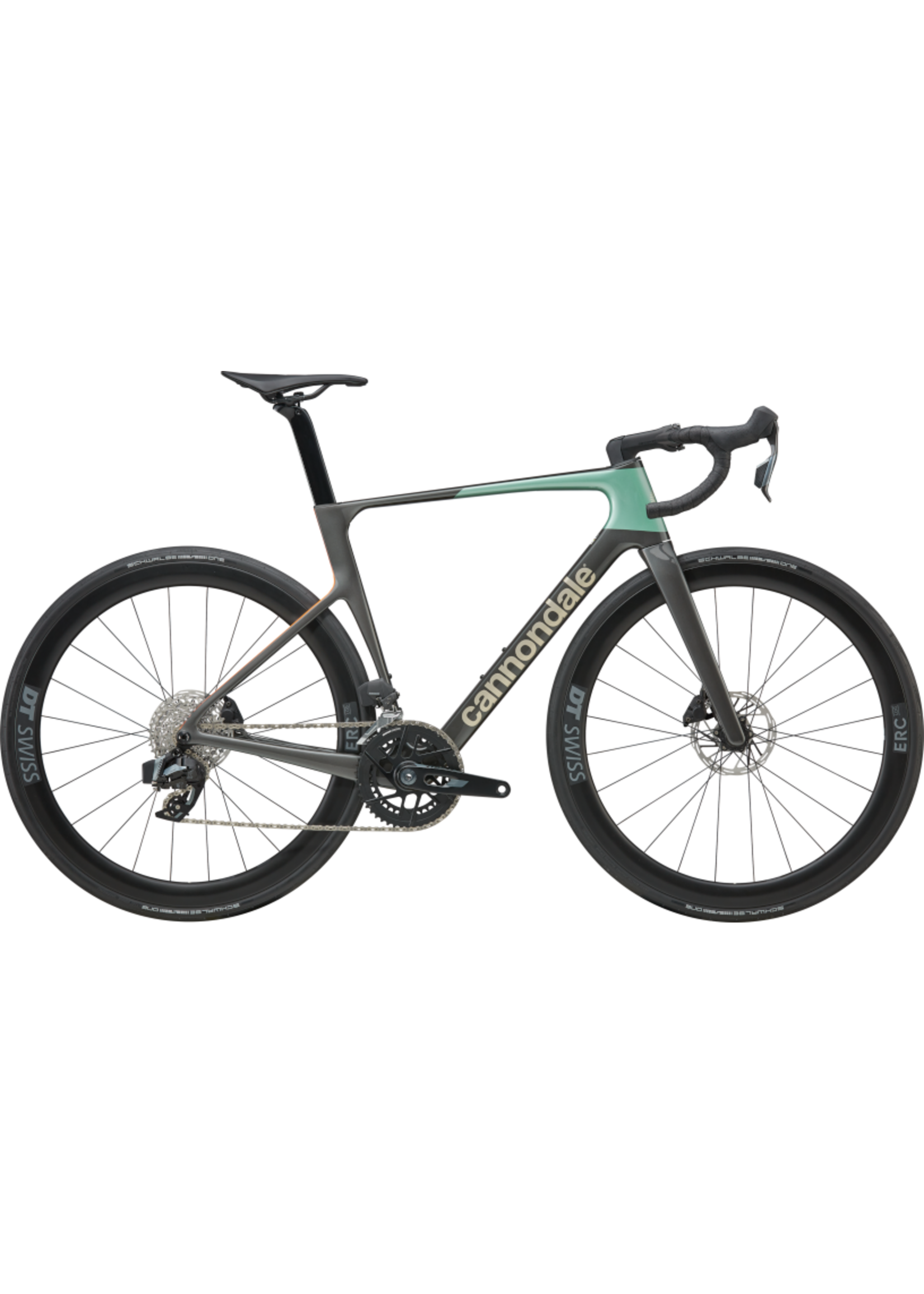

No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere.

Highlights
- Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset - the ideal blend of speed, handling and comfort
- DT Swiss ERC LOG 45 carbon road wheelset - 45mm deep, light, fast, all-around race wheels
- SRAM's workhorse Rival AXS group - precise, reliable wireless electronic shifting
- Vision Trimax Carbon Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
- Fizik Vento Antares R7 saddle - ergonomic comfort with pressure relieving cutout

Product Specifications

Frame

• SuperSix EVO Carbon, Gen 5

• Integrated cable routing

• 12x142mm thru-axle

• BSA 68mm threaded bottom bracket

• Flat mount disc

• Integrated seat binder

• UD carbon construction

Fork

• SuperSix EVO Carbon, Gen 5

• Integrated crown race

• 12x100mm thru-axle

• Flat mount disc

• Internal routing

• 1-1/8" to 1-1/4" Delta steerer

• 55mm offset (44–54cm)

• 45mm offset (56–61cm)

Wheelset

Rims

• DT Swiss ERC LOG 45

• Carbon

• 22mm inner width

• 45mm depth

• 24-hole

• Tubeless ready

Hubs

• Front: DT Swiss 370, 12x100mm centerlock

• Rear: DT Swiss 370 LN Ratchet System, 12x142mm centerlock

Spokes

• DT Swiss Competition

Tires

• Schwalbe One TLR, 700x28c, tubeless ready

• Note: Some bikes may ship with 30c tires depending on regional availability

Pedals

• Not included

Drivetrain (SRAM Rival AXS – 2x12)

Crankset

• SRAM Rival AXS, 48/35T

• 165mm (44–50cm)

• 170mm (52–56cm)

• 172.5mm (58–61cm)

Bottom Bracket

• SRAM DUB BSA

Chain

• SRAM Rival, 12-speed

Cassette

• SRAM Rival XG-1250, 10-36T, 12-speed

Front Derailleur

• SRAM Rival AXS

Rear Derailleur

• SRAM Rival AXS, 12-speed

Shifters

• SRAM Rival AXS, 2x12-speed

Cockpit

Handlebar

• Vision Trimax Carbon Aero

  • 380mm (44–56cm)

  • 400mm (58–61cm)

Bar Tape

• Cannondale Bar Tape, 3.5mm

Stem

• Cannondale C1 Conceal Alloy, 31.8mm clamp, -6°

  • 80mm (44cm)

  • 90mm (48–52cm)

  • 100mm (54–56cm)

  • 110mm (58–61cm)

Headset

• Integrated, 1-1/8" – 1-1/4"

Brakes

• SRAM Rival AXS hydraulic disc

• 160mm / 160mm PaceLine centerlock rotors

Saddle & Seatpost

Saddle

• Fizik Vento Antares R7, 140mm

Seatpost

• Cannondale C1 Aero 40 Carbon V2

• 365mm length

• 0mm offset (44–54cm)

• 15mm offset (56–61cm)

Available Sizes

44, 48, 50, 52, 54, 56, 58, 61
