Faster Everywhere
No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere.
Model Description
Hi-MOD carbon speed with breakaway ambition. The superlight Gen 5 Hi-MOD carbon frame pairs with the aero-optimized System Road cockpit and Reserve 57|64 carbon wheels on DT Swiss 240 hubs to deliver an incredible balance of weight and aero efficiency. SRAM Force AXS with integrated power meter offers wireless shifting and real-time data. Force hydraulic disc brakes maintain composure when speeds rise, and the Gripper Aero bottles and cages reduce drag while keeping you hydrated. Built for riders who attack, and attack again.
What it's for
Breakaways, KOMs, Podiums, and PRs
Highlights
- Superlight, low drag Gen 5 SuperSix EVO frameset. Hi-MOD carbon construction - incredibly light and responsive
- Cannondale SystemBar Road - aero-optimized, lightweight full carbon integrated bar/stem for race winning speed and efficiency
- Reserve 57|64 wheelset with DT Swiss 240 hubs- 57mm front / 64mm rear for confident handling and relentless aero gains
- SRAM Force AXS 12-speed – precise, programmable shifting from SRAM’s penultimate wireless electronic group
- SRAM Force AXS carbon cranks with integrated Power Meter - light, stiff, and super accurate
- Fizik's premium Vento Antares R1 saddle with carbon rails

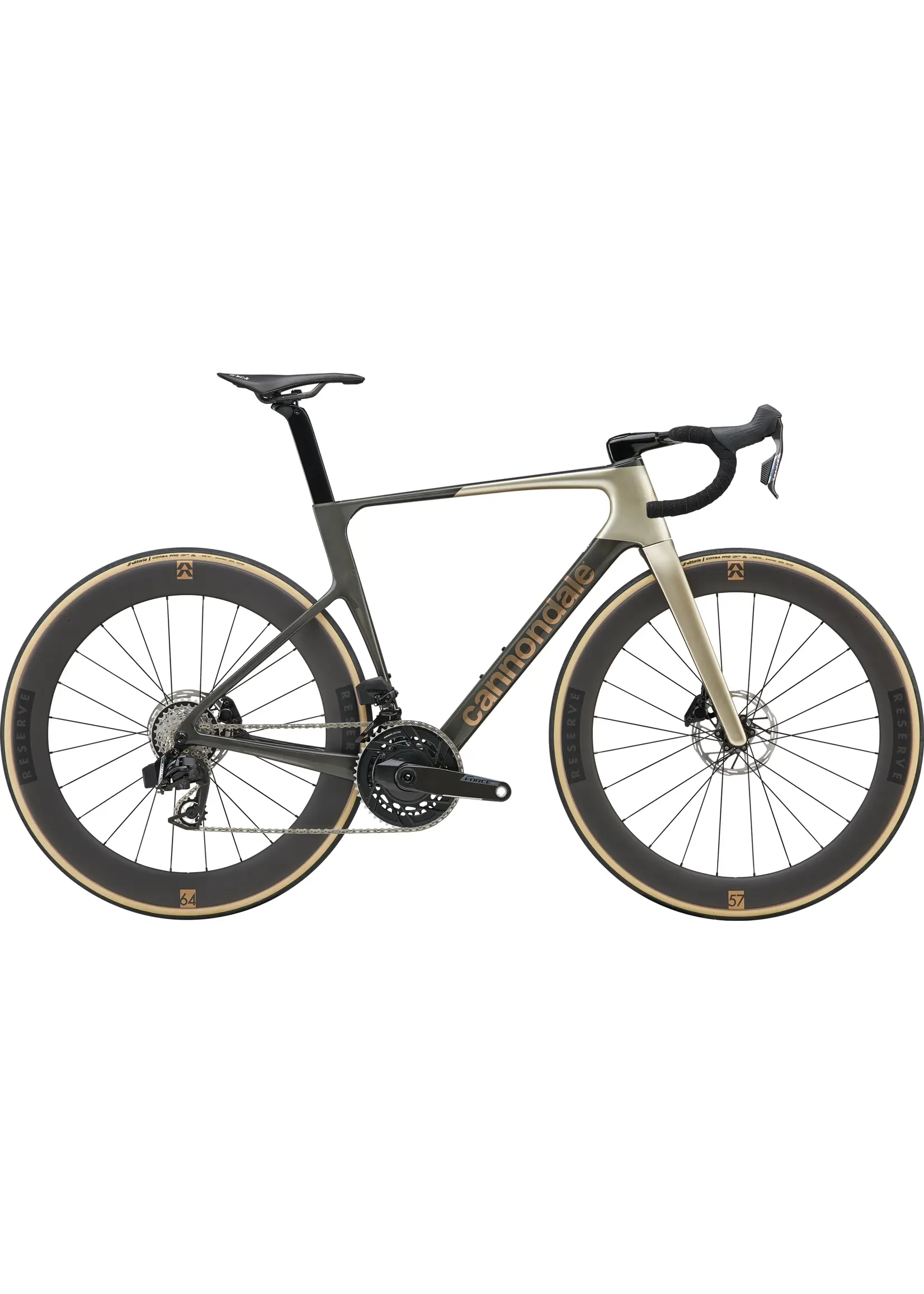

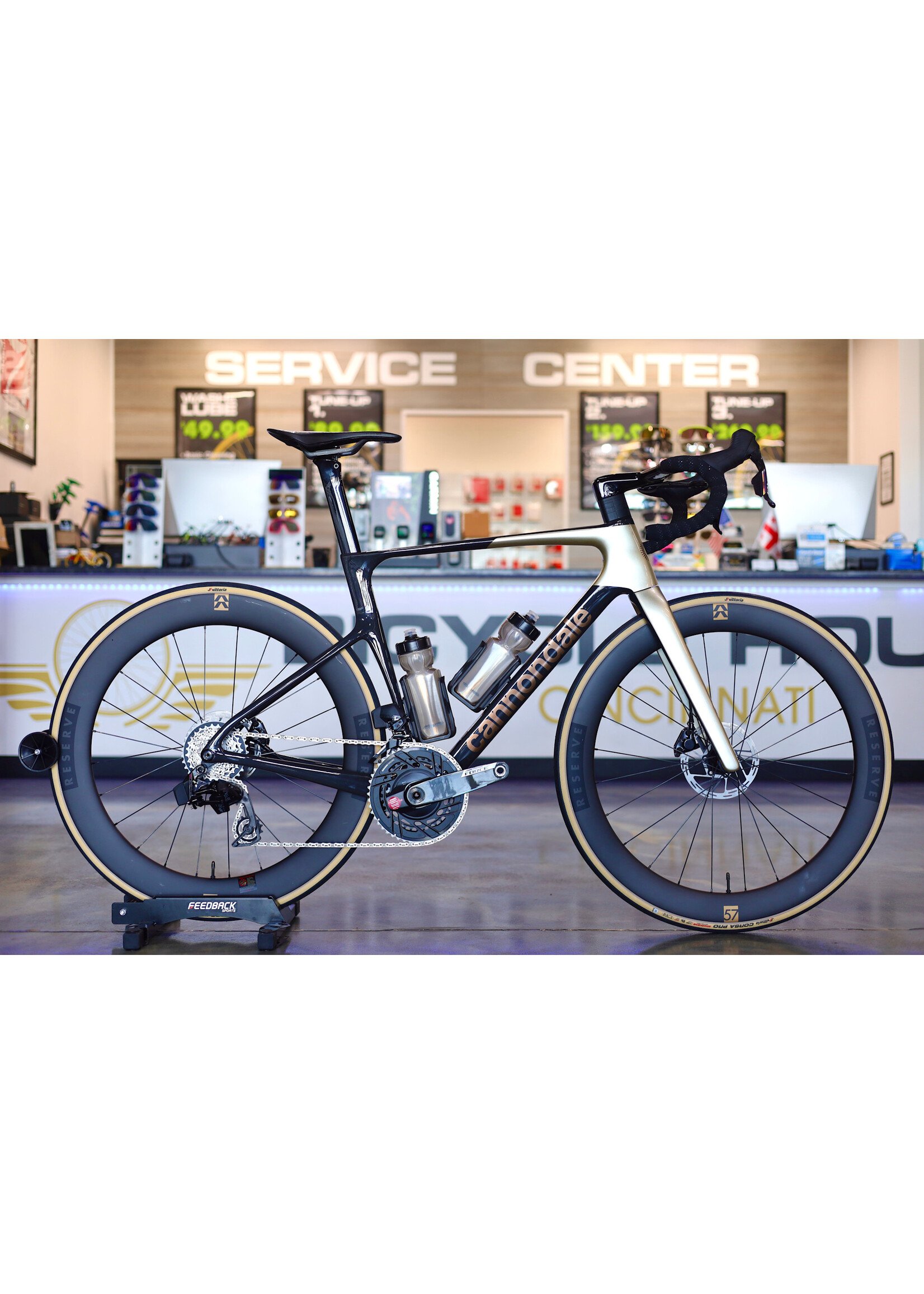

Cannondale SuperSix EVO 1 (Hi-MOD Gen 5)
Model Code: C1104GU
Platform: SuperSix EVO
Frameset
Frame: SuperSix EVO Hi-MOD Carbon, Gen 5, integrated cable routing, 12x142mm thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
Fork: SuperSix EVO Hi-MOD Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer
• 55mm offset (44–54cm)
• 45mm offset (56–61cm)
Headset: Integrated, 1-1/8" – 1-1/4"
Drivetrain
Rear Derailleur: SRAM Force AXS, 12-speed
Front Derailleur: SRAM Force AXS
Shifters: SRAM Force AXS, 2x12-speed
Chain: SRAM Force, 12-speed
Crankset: SRAM Force AXS Power Meter, 48/35T
• 165mm (44–50cm)
• 170mm (52–56cm)
• 172.5mm (58–61cm)
Cassette: SRAM Force XG-1270, 10-33T, 12-speed
Bottom Bracket: SRAM DUB BSA
Brakes
Brakes: SRAM Force AXS hydraulic disc
Rotors: 160mm / 160mm SRAM Paceline CenterLock
Brake Levers: SRAM Force AXS hydraulic
Wheelset
Rims: Reserve 57|64 Carbon, Turbulent Aero, tubeless ready
Hubs: DT Swiss 240, CenterLock, straight pull
• Front: 12x100mm
• Rear: 12x142mm
• Ratchet EXP 36
Spokes: Sapim CX-Ray Aero, straight pull
Wheel Size: 700c
Tires: Vittoria Corsa Pro, 700x29c, tubeless ready
Components
Handlebar/Stem: Cannondale SystemBar Road, full carbon integrated cockpit
• 90x340mm (44–52cm)
• 100x360mm (54–56cm)
• 110x380mm (58–61cm)
Bar Tape: Fizik Tempo Bondcush Soft, 3mm
Saddle: Fizik Vento Antares R1, carbon rails, 140mm
Seatpost: Cannondale C1 Aero 40 Carbon V2, Ti hardware, 365mm
• 0mm offset (44–54cm)
• 15mm offset (56–61cm)
Included Extras
• Cannondale Gripper Aero Bottles
• Cannondale CarbonGrip Aero Cages
• Fillmore tubeless valves
• SRAM AXS charger
• SystemBar SL Garmin/Wahoo computer mount
